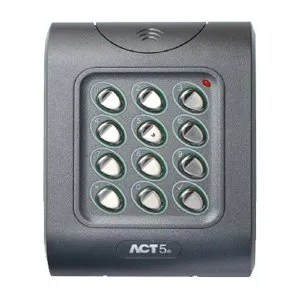

ACT5 Pin Only Keypad

Product Description

ACT5 Pin Only Keypad is simple to use and easy to install standalone access control product.

Each keypad is contained in a stylish polycarbonate housing, with stainless steel keys and potted electronics, allowing for indoor and outdoor installation due to being IP67 rated.

Main Features:

• 10 User Codes
• Keypad Backlighting
• Incorrect code lockout
• 5 amp door relay output

Product Specification of ACT5 Pin Only Keypad:

• Operating Voltage: 12 to 24 Volts AC or DC
• Current Consumption: 30mA (nominal)
  120 mA (max)
• Operating Temperature: -10 to +50 degrees C
• Door Open Time: 0 – 255 seconds
• Relay Contact Rating: 5A / 250 Vac
• Weight: 225 grams
• Dimensions (H x W x D, mm): 94 x 130 x 25
• Mounting: Surface / flush
• Installation: Indoor / outdoor

Installation Guidelines:

• 12 to 24 volts AC or DC supply required
• 5 amp lock output
• Can be installed either indoors or outdoors (IP67)
• Operating Temperture: -10 to +50 C
• Can be surface or flush mounted

The ACT5 Pin Only keypad supports 10 user PIN codes in a stylish polycarbonate housing with stainless steel keys and potted electronics, allowing for indoor and outdoor installation. To view other Standalone ACT products similar to the ACT5 that are avaliable from Videplus, please click here.
