ACT5E-PROX Digital Keypad & Proximity Reader

ACT5E-PROX Digital Keypad & Proximity Reader

Product Documents

SKU: ACT5-PROX. Category: Tags: , , , , , , , , ,

Product Description

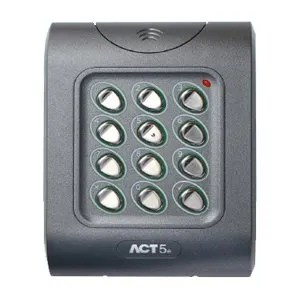

The ACT5E-PROX Digital Keypad & Proximity Reader is a simple to use and easy to install standalone access control product.  Keypad back lighting enhances functionality at night or in low light conditions.

The ACT 5E digital keypad is contained in a stylish polycarbonate housing, with stainless steel keys and potted electronics, allowing for indoor and outdoor installation. The ACT 5E can be surface or flush mounted.


  • Keypad Back lighting
  • Incorrect code lockout
  • 5A door relay output
  • 50 Users with unique Pin Codes and / or ACTProx Cards
  • Keypad Backlighting
  • Incorrect code lockout
  • 5 amp door relay output
  • Users can be deleted if a card is lost or a Pin Code forgotten

Operating modes are:

  • Proximity
  • PIN
  • Proximity or PIN
  • Proximity and Proximity
  • Proximity and any PIN

Specification of ACT5E-PROX Digital Keypad & Proximity Reader:

  • Operating Voltage: 12 to 24 Volts AC or DC
  • Maximum of 50 codes and 50 key fobs
  • Current Consumption: 60mA (nominal) – 100mA (max)
  • IP67 Rated
  • Operating Temperature -10 to +50 degrees C
  • Door Open Time 0 – 255 seconds
  • Relay Contact Rating 5A / 250 V AC
  • Dimensions (H x W x D, mm) 94 x 130 x 25

Please remember to Factory Default the ACT 5e prox before programming during installation.
