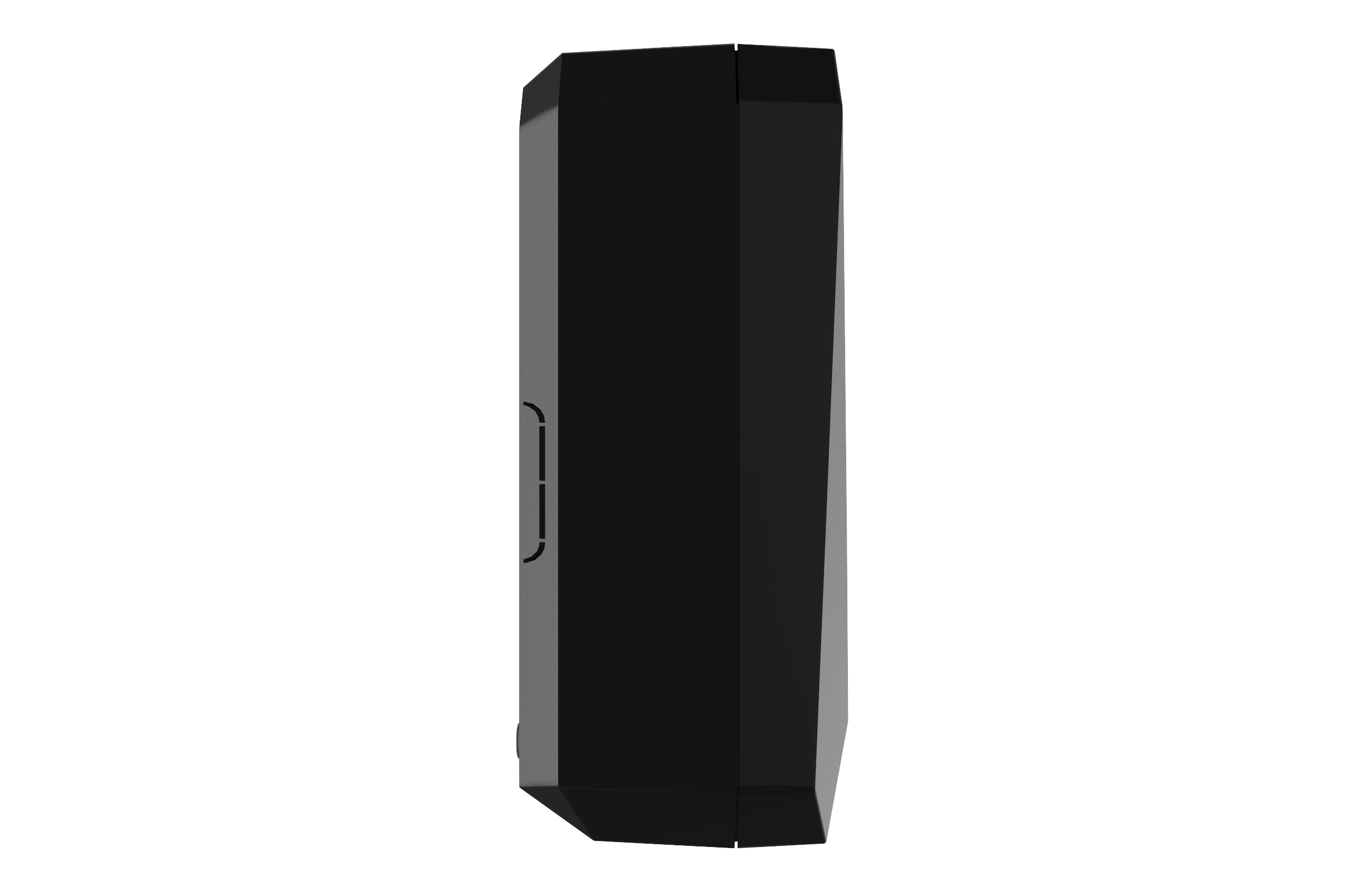

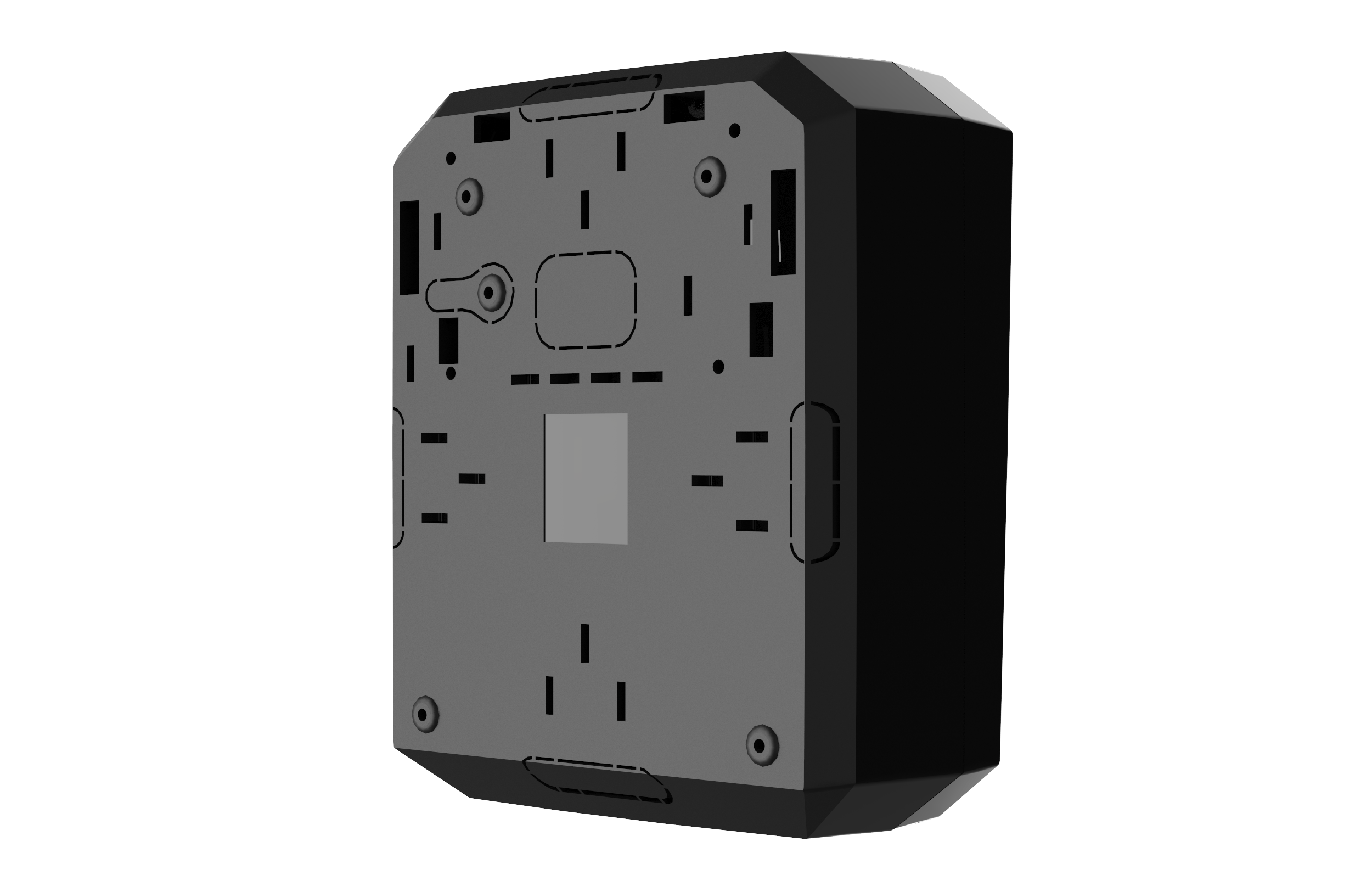

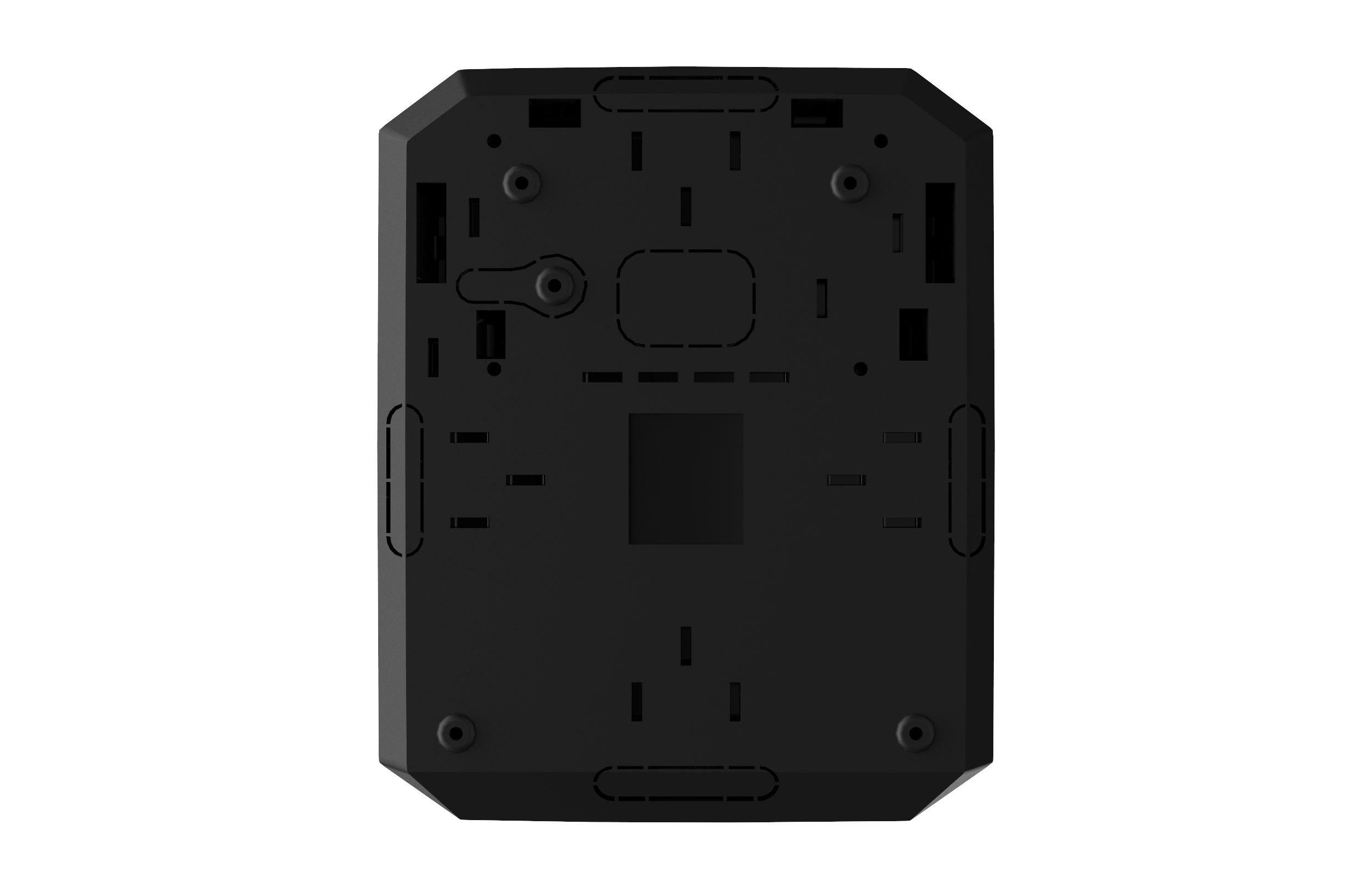

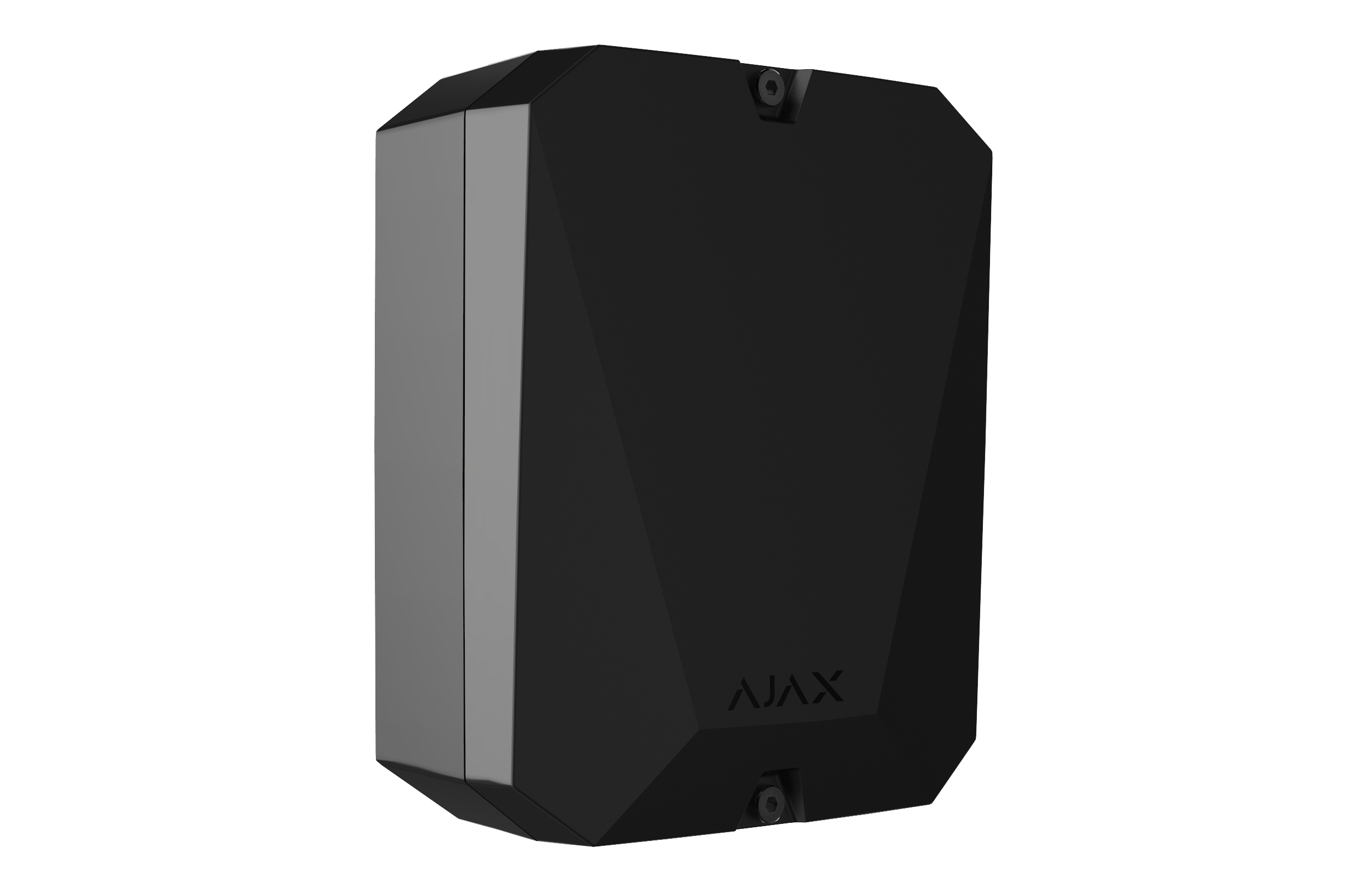

AJ-MULTITRANSMITTER-B Ajax Multi Transmitter (Integration for 18 Wired Zones)

    AJ-MULTITRANSMITTER-B Ajax Multi Transmitter


    Product Description

    AJ-MULTITRANSMITTER-B Ajax Multi Transmitter

    • Number of alarm/tamper zones – 18
    • Compatibility – Operates only with Hub, Hub Plus, Hub 2, Hub 2 Plus and ReX
    • Supported detector contact types – NO, NC (without R), EOL (NC with R), EOL (NO with R)
    • Alarm signals processing mode – Pulsed or bistable
    • Main power supply – 110–255 V, 50/60 Hz
    • Dimensions – 196 х 238 х 100 mm

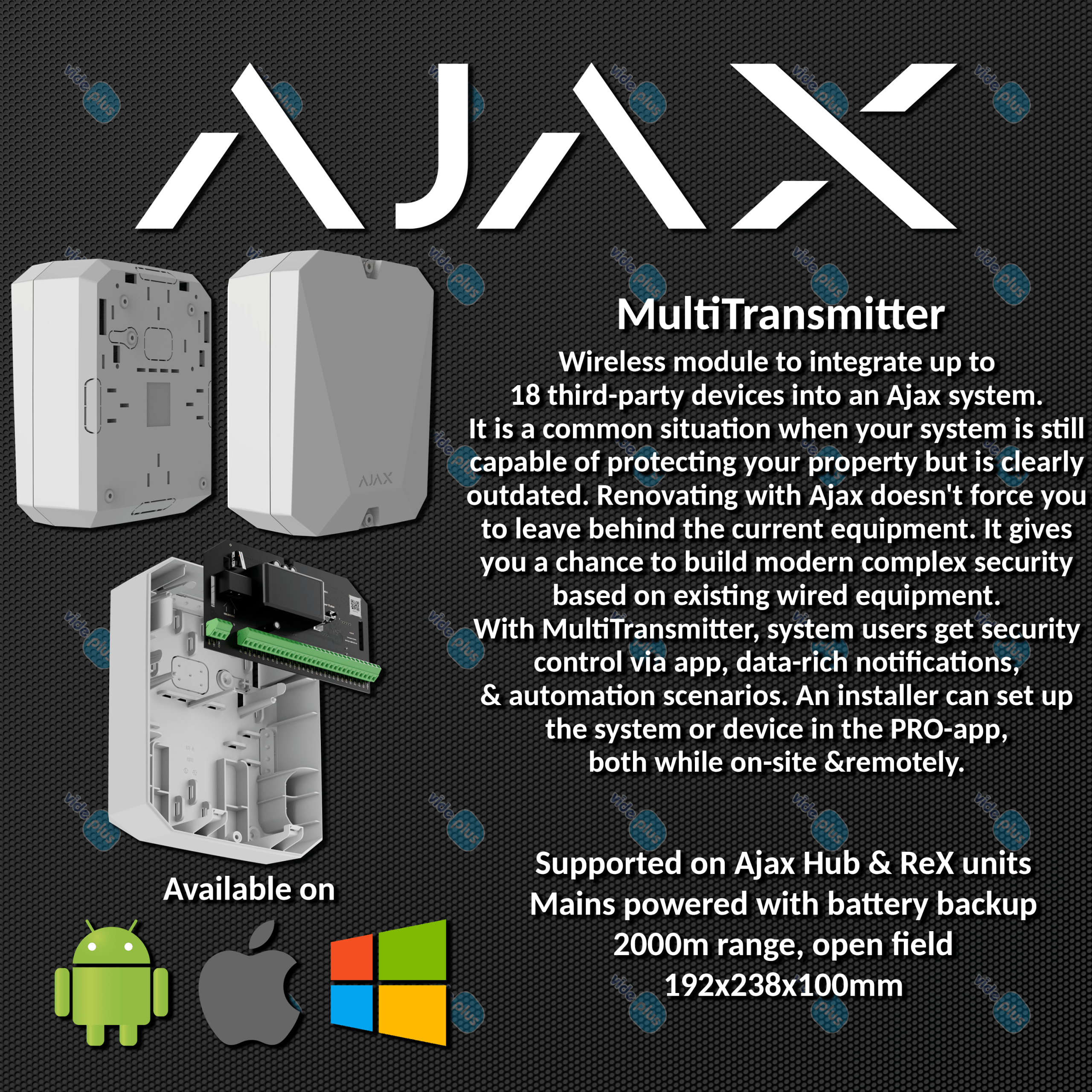

    A module for integrating third-party wired devices into Ajax

    Wired alarm renovation

    Tens of detectors and kilometers of wire can now effortlessly be transformed into a modern smartphone-controlled security system. Replacing the old security control panel, the module connects wired devices to a hub and makes them a full-fledged part of Ajax. MultiTransmitter is a step towards awareness and reliability. For a security company, it opens the possibility to configure the equipment remotely, and users get all the benefits of managing the system through an app.

    More Ajax features

    IR barriers, household gas, temperature, liquid level detectors, and much more — with MultiTransmitter, these devices are ready to expand the Ajax areas of use. And wired connectivity and support of international security industry standards ensure full compatibility.

    New features of old devices

    MultiTransmitter has 18 wired zones, each of which can be configured in the Ajax app. The detectors connected to the zones can be active 24/7, operate with entering or exiting delay, activate sirens if necessary, and participate in automation scenarios. With MultiTransmitter, the old alarm system becomes part of a secure and smart home.

    Data-rich alarms

    With MultiTransmitter, you can specify the type of alarm and a room for each wired device. This makes notifications more informative — you know not just what happened but where. Information sent via push notifcation, SMS and under appropriate code sent to the security company’s monitoring station. A total of five types of alarms are available: intrusion, fire, medical assistance, panic button, gas alarm.

    Radio communication without reliability compromises

    MultiTransmitter communicates with a hub via an encrypted Jeweller radio protocol. This is a TDMA technology developed by Ajax Systems for uninterrupted communication with devices. Jeweller detects jamming attempts, switches to the backup frequency in case of interference, which allows AJ-MULTITRANSMITTER-B Ajax Multi Transmitter and other Ajax wireless devices to run on battery power for years.
