AJ-PSU12V-HUB2 Ajax 12V PSU

Product Description

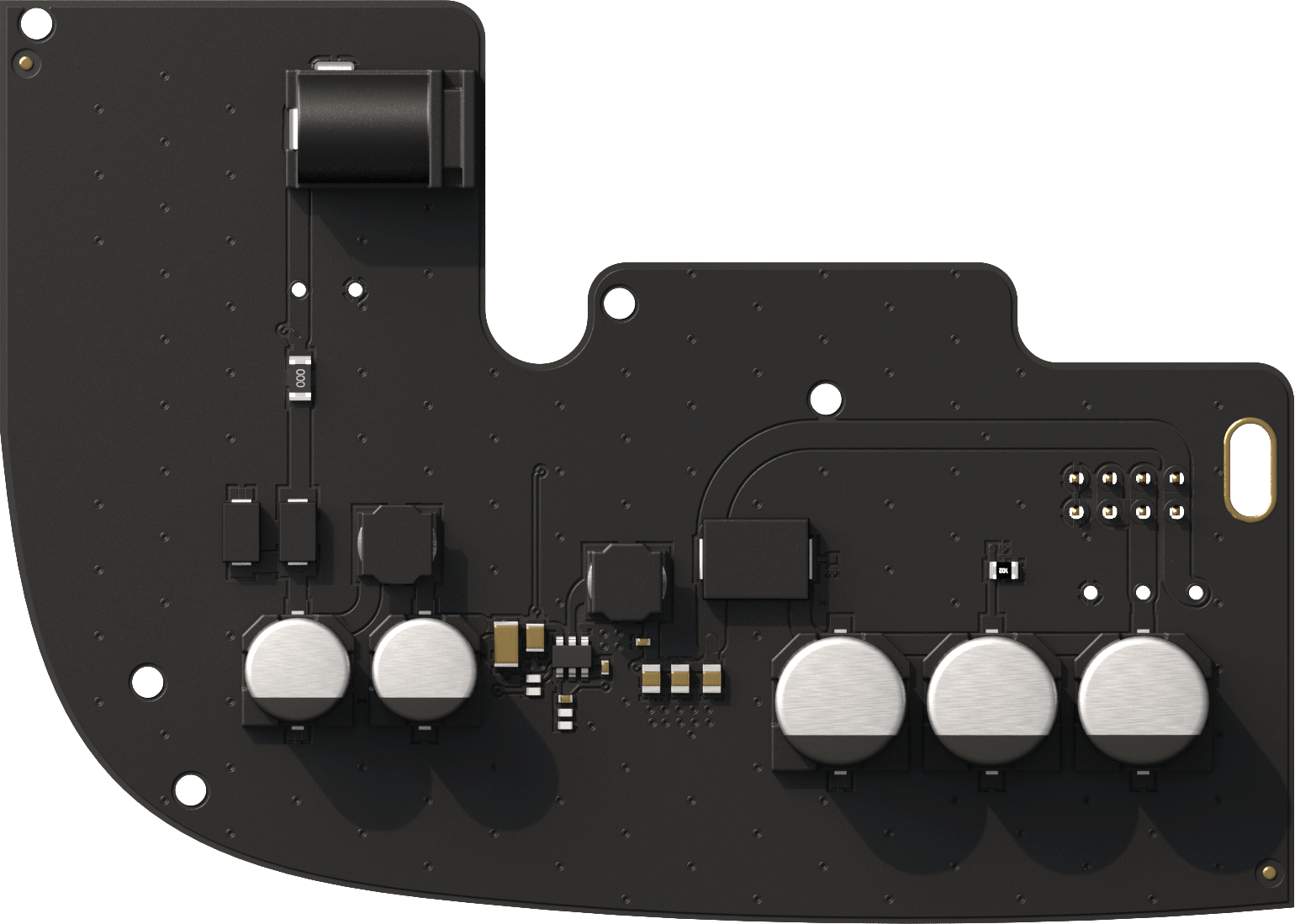

AJ-PSU12V-HUB2 Ajax 12V PSU for Hub 2 and Rex 2. A power supply unit which connects the control panel to a low voltage power source. This is an electronic board, replacing the standard 110/230 V power supply unit in the body of the device. Engineered with precision and durability in mind, this power supply unit ensures uninterrupted operation of your security system, providing peace of mind and reliable performance.

Features of AJ-PSU12V-HUB2

• DC Input
• 8-20 V input voltage
• Compatible with Hub 2 / Rex 2

Installation process:

1. Remove screws and take off the device from the mounting panel, shifting it down with force.
2. Switch off device, holding the power button for 2 seconds.
3. Disconnect power and Ethernet cables.
4. Remove four screws of the back lid.
5. Remove the screws attaching the boards to the device body.
6. Carefully remove both boards, not disconnecting them and keeping them in the same plane.
7. Disconnect the power supply unit (smaller board) from the mainboard.
8. Connect 12V PSU to the mainboard using the eight-pin connector between them.
9. Reassemble the boards and the device body than tighten the screws.
10. Connect the power and Ethernet cables.
11. Switch on the 12 V power source.
12. Switch on the device by holding the power button for 2 seconds.
13. Close and fix the SmartBracket mounting panel.
