DH-TPC-BF2221P-TB3F4 Thermal Network Hybrid Bullet Camera 3mm Lens

  • 256×192 VOx uncooled thermal sensor technology
  • Athermalized Lens (thermal), Focus-free
  • 1/2.8” 2Megapixel progressive scan CMOS
  • Support ROI, motion detection, color palettes
  • Smart alarm linkage with white light & loudspeaker
  • Support Fire detection & alarm
  • Built-in 2/2 alarm in/out
  • Micro SD memory, IP67, PoE/ePoE

System Overview

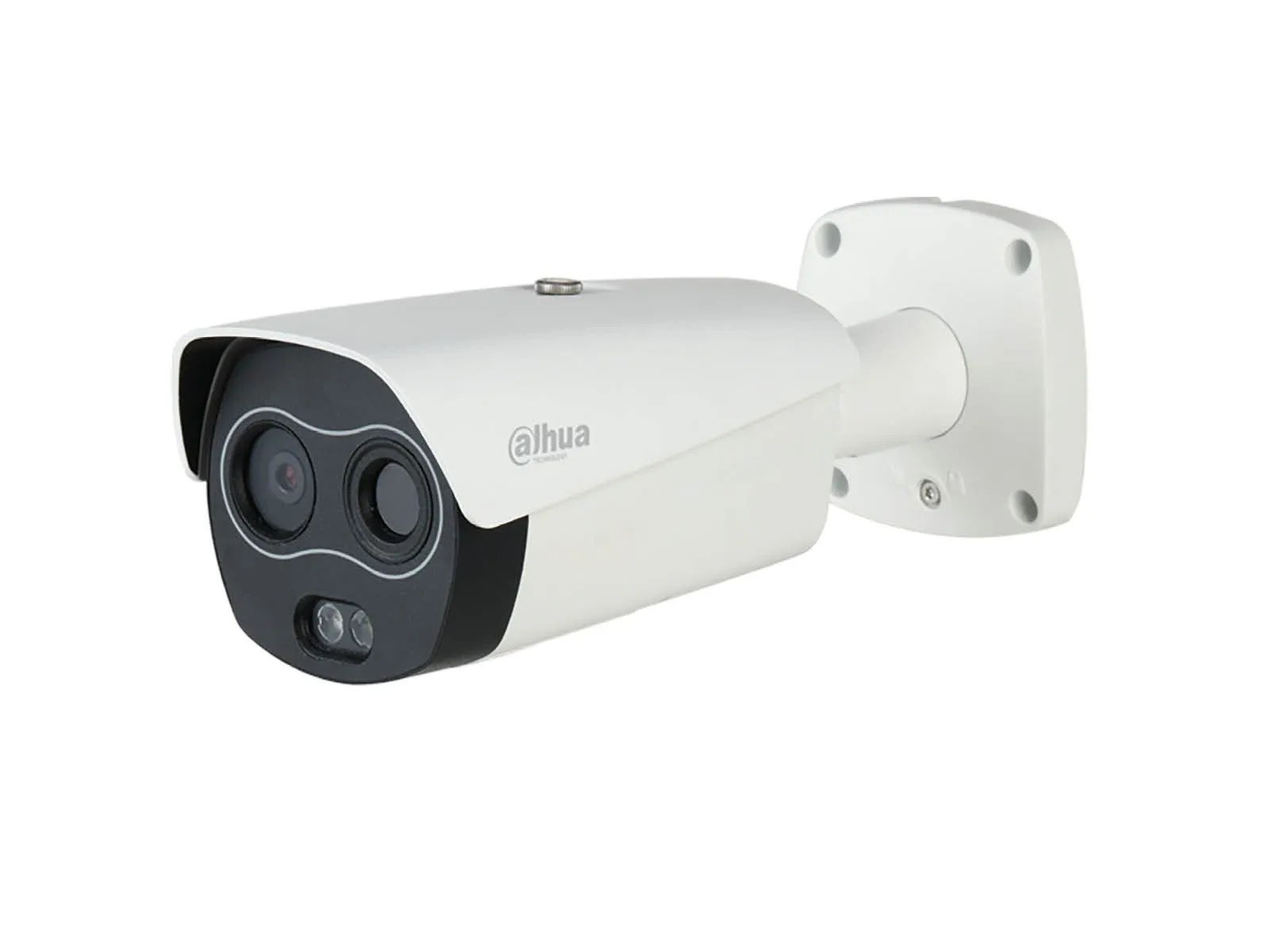

Featuring a dual lens, fixed bullet camera, this series provides an all-in-one solution for capturing video surveillance for indoor and outdoor applications. Together with thermal and visible-light technology, the camera is the perfect solution for dark, small area monitoring applications. The series combines one thermal camera for monitoring in total darkness and one visible camera with smart IR for confirming details.

Functions of DH-TPC-BF2221P-TB3F4 Thermal Network Hybrid

Uncooled Vox Technology

Dahua thermal cameras use uncooled Vox sensor technology. Because of small size and better performance, it’s cost-effective solution for thermal security.

High Sensitivity

High thermal sensitivity(<50mK) makes cameras capture more image details and temperature difference information.

Fire Detection & Alarm

With built-in fire detect function, the camera has the ability to detect fire in a long distance. because thermal camera is sensitive to temperature, so the accuracy of fire detection will be higher than visible-light camera.

Smart Alarm Linkage

When an abnormal event is detected by thermal or visible-light channel, the white light and loudspeaker will turn on to make a visual or voice prompt , then record and snapshot. The white light and the content of loudspeaker is configurable.
