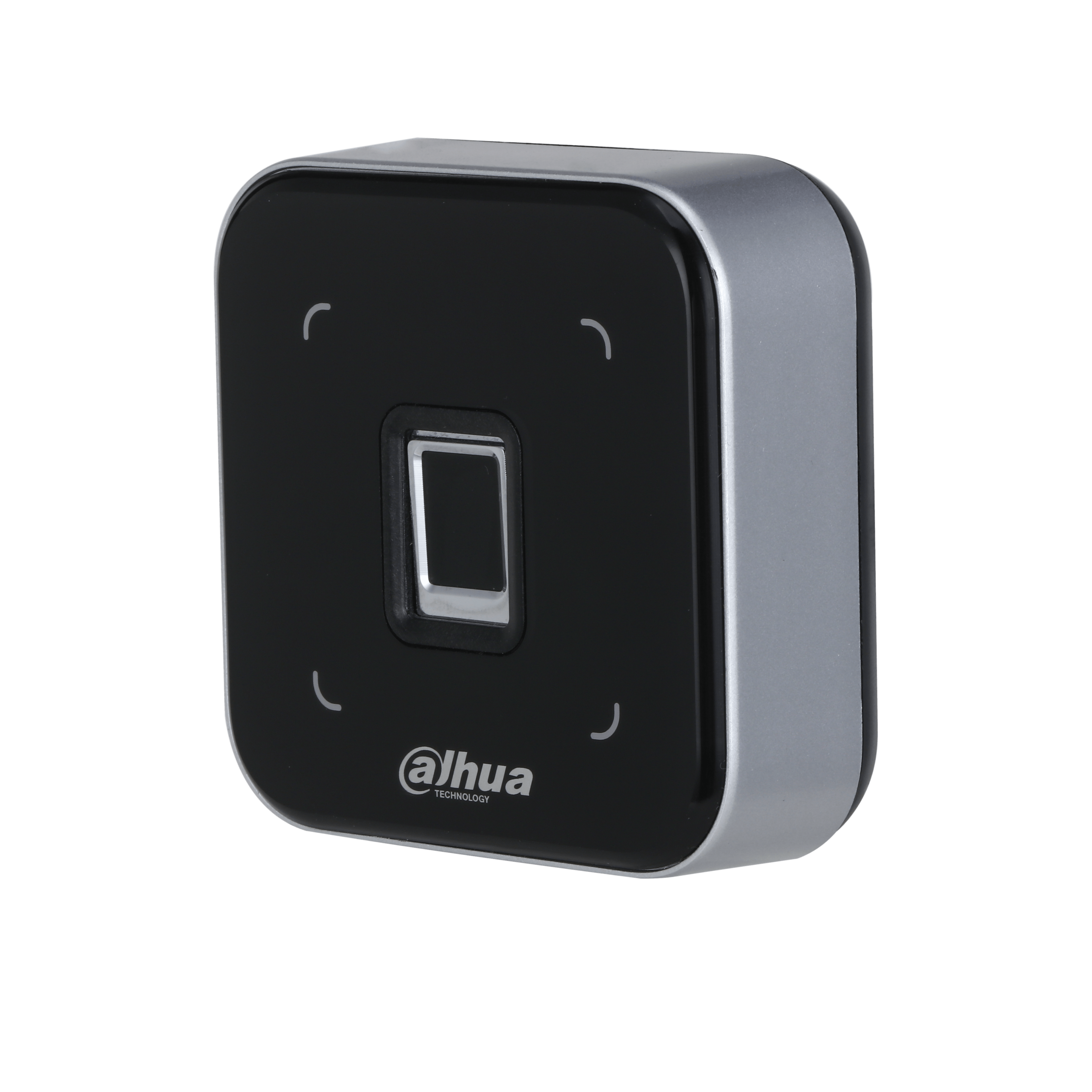

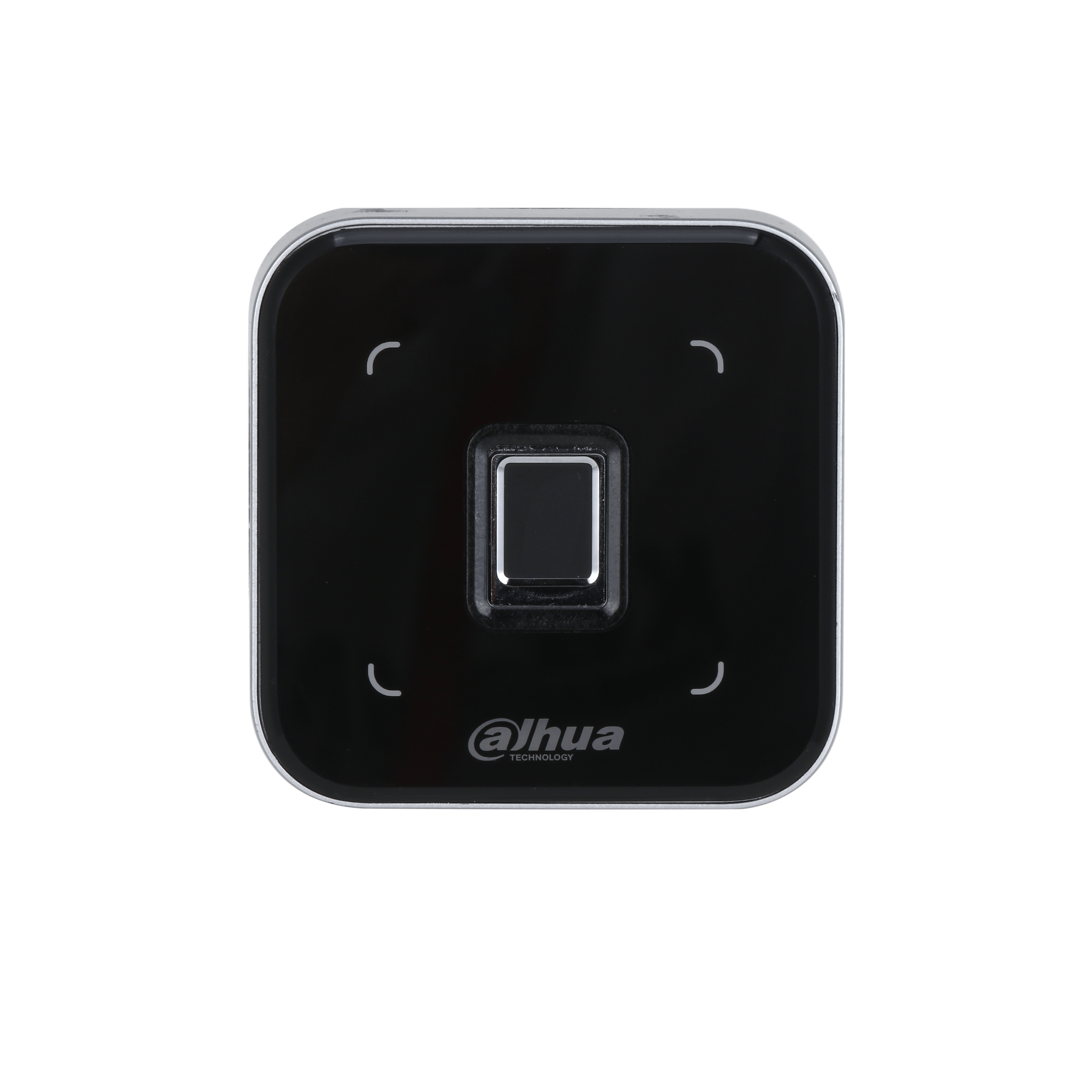

DHI-ASR2102A Fingerprint & MiFare Card Reader

Product Description

DHI-ASR2102A Fingerprint & MiFare Card Reader IP65

• PC material, acrylic panel and IP65, suitable for indoor and outdoor use
• Support contactless recognition of ID card (MiFare Card)
• Support card/fingerprint unlock
• Support RS-485 communication protocol
• Support buzzer and indicator prompt
• Support anti-tampering alarm
• The built-in watchdog can detect and control the abnormal operation status of the equipment and perform recovery processing to ensure the long-term operation of the equipment
• All connection ports have overcurrent and overvoltage protection

As a key part of the access control system, the DHI-ASR2102A Fingerprint & MiFare Card Reader supports card and fingerprint unlock, and sends the information to the access controller for verification. With a thin and elegant design, it is applicable to industrial zones, office buildings, schools, factories, stadiums, CBD, residential area, government properties, etc

Technical Specification

Power Supply: 12V 0.5A DC
Protection: IP65 (silicon sealant is needed, see the manual)
Power Consumption: Standby ≤ 1.0W, working ≤ 1.7W
Product Dimensions: 70 mm × 70 mm × 26 mm (2.76″ × 2.76″ × 1.02″) (L × W × H)
Packaging Dimensions: 110 mm × 97 mm × 90 mm (4.33″ × 3.82″” × 3.54″) (L × W × H, 1 in inner carton)
578 mm × 313 mm × 204 mm (22.76″ × 12.32″ × 8.03″) (L × W × H, carton)
Operating Temperature: –20°C to +65°C (–4°F to +149°F)
Operating Humidity: 5%RH–95% (non-condensing)
Environment (Operating): Indoor; outdoor
Gross Weight: 0.17 kg (0.37 lb)
Installation: Surface mount
