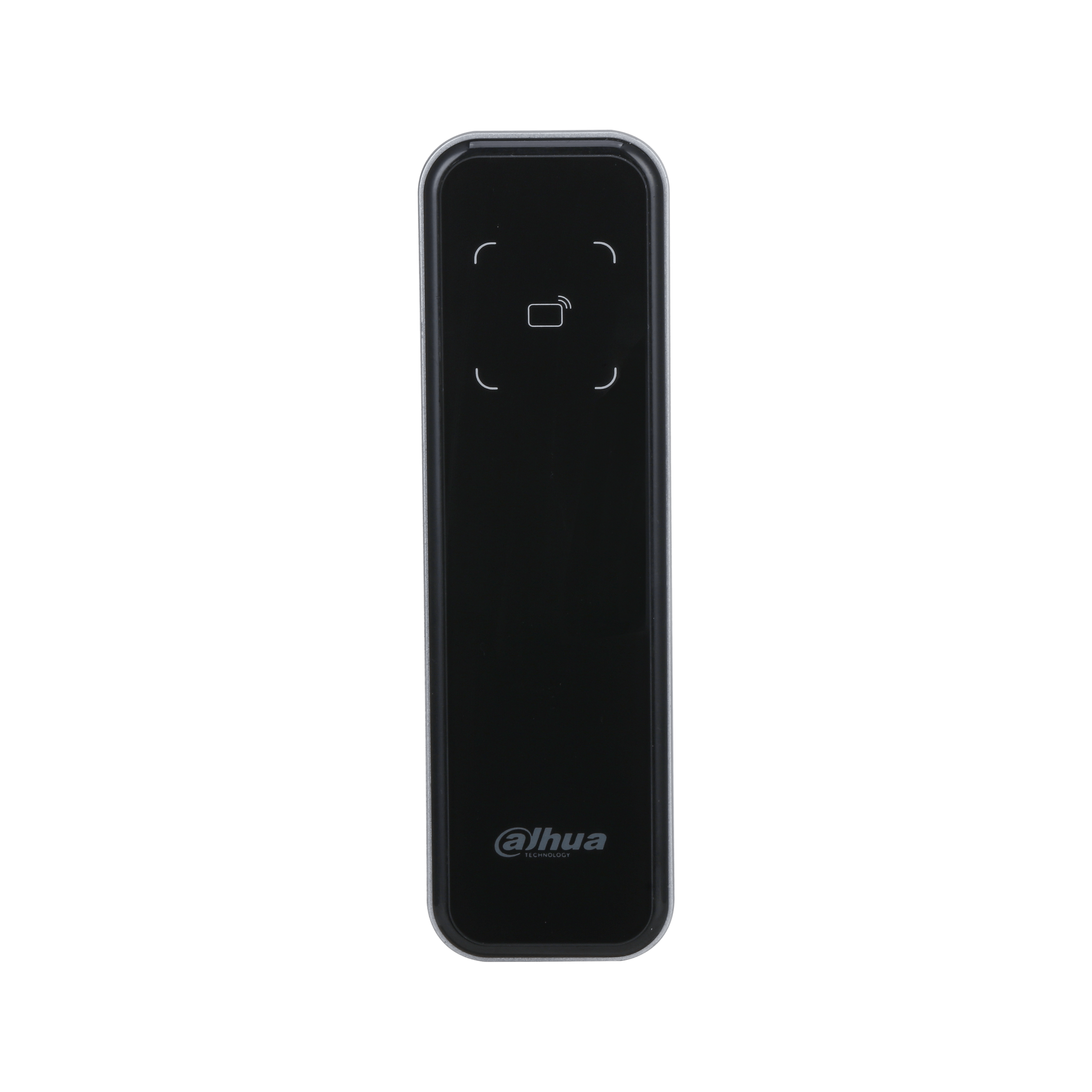

DHI-ASR2200A Slim MiFare RFID Reader

Product Description

DHI-ASR2200A Slim MiFare RFID Reader Waterproof IP66

• PC material, tempered glass panel and IP66, suitable for indoor and outdoor use
• Support contacless recognition of ID card
• Support card unlock
• Support RS485 and Wiegand communication
• Support buzzer and indicator prompt
• Support anti-tampering alarm
• The built-in watchdog can detect and control the abnormal operation status of the equipment and perform recovery processing to ensure the long-term operation of the equipment
• All connection ports have overcurrent and overvoltage protection

Series Overview

As a key part of the access control system, DHI-ASR2200A Slim MiFare RFID access control card reader supports card unlock and sends the information to the access controller for verification. With a thin and elegant design, it is applicable to industrial zones, office buildings, schools, factories, stadiums, CBD, residential area, government properties, etc.

Technical Specification

Basic

Product Type: Slim Card Reader
Buzzer: Yes
Casing: Tempered glass/PC

Function

Unlock Mode: Card swiping
Card Type: ID card

Performance

Response Time: 0.1 s
Card Reading Distance: 0 cm–5 cm (0″–1.97″)

Port

RS-485: 1 channel
Wiegand: 1 output channel

Alarm

Tamper Alarm: Yes

General

RS-485: 1 channel

Power Supply: 12V 0.5A DC
Protection: IP66 (silicon sealant is needed, see the manual)
Power Consumption: Standby ≤ 0.9W, working ≤ 1.7W
Product Dimensions: 135 mm × 40 mm × 15 mm (5.31″ × 1.57″ × 0.59″) (L × W× H)
Packaging Dimensions: 195 mm × 75 mm × 52 mm (7.68″ × 2.95 × 2.05″) (L × W× H, 1 in inner carton) 415 mm × 400 mm × 230 mm (16.34″ × 15.75″ × 9.06″) (L × W × H, carton)
Operating Temperature: –30°C to +70°C (–22°F to 158°F)
Humidity (Operating): 5%RH–95% (non-condensing)
Operating Environment: Indoor; outdoor
Gross Weight: 0.16 kg (0.35 lb)
Installation: Surface mount
Certifications: CE; FCC
