Product Description

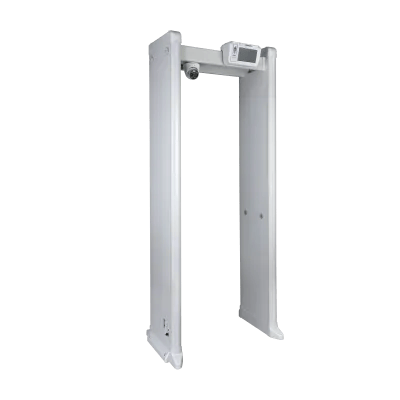

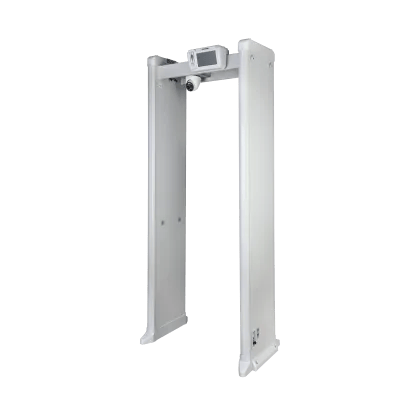

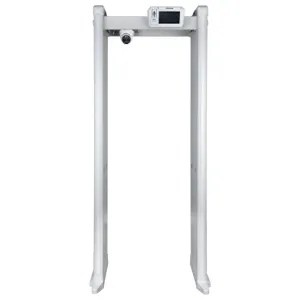

DHI-ISC-D718-T Temp Monitoring Walk-through Metal Detector tector is a high performance and high-sensitivity security gate that can detect body temperature. The device has high metal detection sensitivity, light weight, strong anti-interference, and stable performance. Uses high-strength special materials;  light-weighted and easy to transport and install.

The Device has a modular design and is manufactured on the unified assembly lines, so it can ensure the good stability. It also has delivers intuitive interface and simple use, so no operation training is required to use it. Featuring dual lens, fixed camera, this series provides an all-in-one solution for capturing video surveillance for indoor and outdoor applications.

Together with Thermal and Visible Technology, the camera is the perfect solution for dark, small area monitoring applications. The series combines one thermal camera for monitoring in total darkness and one visible camera with Smart IR for confirming details

Features of DHI-ISC-D718-T Temp Monitoring Metal Detector:

  • Two sets of high-brightness red-green LEDs, super bright double-row area indicator lights and independent interactive 18-zone function with 22 detectors
  • 7-inch full-color touch-screen LCD display
  • Easy to install and use with modular design
  • Safe use with low voltage design
  • Stable running with anti-loose aviation power plug
  • High-strength Fire retardant High-pressure Laminate(HPL) material
  • Monitor and show background interference in real time
  • Count the numbers of passes and alarms respectively
  • Count the numbers of people with normal body temperature and
  • Monitor and show body temperate in real timeTrigger sound and light warning for body temperate alarm
  • Ultra-high sensitivity
  • 72 application scenarios and extra 16 customize scenarios
  • Zone sensitivity adjustable from 0 to 255
  • Security degree adjustable from 0 to 99
  • 100 working frequencies selectable
  • Alarm sound volume adjustable from 0 to 10; support mute mode
  • 17 alarm sound types
  • Multiple start-stop modes for IR
  • Power-on self-test
  • Remote monitoring and configuration through network


  • Uncooled VOx thermal sensor technology
  • Athermalized lens (thermal camera), focus-free
  • 1/2.7” 4Megapixel progressive scan CMOS
  • Support ROI, motion detection, color palettes
  • Smoking and call behaviour detection
  • Support fire detection & alarm
  • Built-in 1/1 alarm in/out
  • Micro SD memory, IP67, PoE
  • Smart linkage with strobe light & audio
  • Dual image fusion (visible and thermal images)

System Overview:

The Temperature Monitoring walk-through metal detector uses IR and electromagnetic field to detect body temperature and carry-on metal articles.  It gives sound and light alarm to indicate that the body temperature or carry-on metal is beyond a certain threshold. It consists of a temperature monitoring camera, host, high-frequency signal generator, signal receiver, and infrared sensor, with a beautiful appearance, strong metal detection capability, 18 detection zones, a unique Internet remote management system, and light weight.
