DLB-5-15AC 500+ Mbps mid-range wireless client

    DLB-5-15AC 500+ Mbps mid-range wireless client



    Product Description

    The DLB-5-15AC 500+ Mbps mid-range wireless client uses a 500+ Mbps throughput. A result of powerful hardware platform with 802.11ac technology based radio and a proprietary data transmission protocol (iPoll). Incorporating a QCA 9563 CPU (750 MHz), a QCA 9882 radio and 64 MBytes of RAM and 16 MBytes of ash memory the, LigoDLBac series devices are an ideal solution for capacity demanding applications. State of the art RF design with great output power and sensitivity parameters improve range and capacity over the highest modulation – 256 QAM. The 24V Gigabit Ethernet port (passive PoE) allows utilizing the full capacity of the radio when used in a point-to-point or point-to-multipoint network design. LigoDLBac series devices are backwards compatible with LigoDLB devices using iPoll mode. This mode helps to expand or upgrade existing networks using the latest technologies over time.

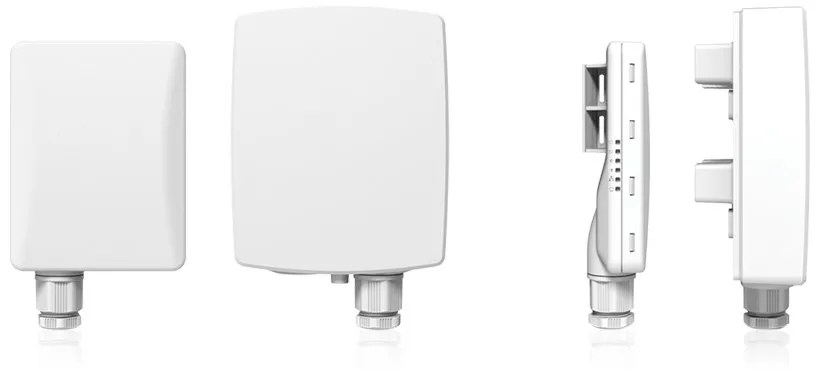

    Small form factor

    The shape of the enclosure is now smaller, lighter but retains the IP65 weather protection rating.  Smaller packaging reduces freight costs and makes the less obvious.  The new design has no metal parts, which makes them lighter and corrosion resistant.

    Integrated surge protection

    3 kV line to ground and 1 kV line-to-line protection allows operating in a harsh weather conditions and unstable electrical installations. This is a benefit to the DLB-5-15AC 500+ Mbps mid-range Wireless Client.

    LigoWave OS

    LigoWave OS contains all of the essential features for establishing fast, strong, and reliable PTMP networks. The LigoWave OS includes IPv6 Bridge & Router Support, SSDP & Bonjour Device Discovery Options. It also includes Flexible Traffic Shaping, DHCP Option 82, and more.

    iPoll 3: Enhanced Protocol

    LigoWave’s iPoll PTMP (Point-To-Multi-Point) propietary is an innovative solution. Therefore, eliminating transmission congestion and close-cluster interference created in wireless PTMP installations

    Hotspot scenario support

    Starting from v7.52 Infinity firmware image can be used on a LigoDLB series devices for the outdoor hotspot and other related applications. After the firmware upgrade DLB devices are converted into access points for outdoor hotspot networks and will lose the functionality of point-to-point or point-to-multipoint connectivity.


    LinkCalc is LigoWave’s free wireless outdoor link planner and bandwidth calculator. Allowing users to design wireless PTP/PTMP networks using virtual maps without the need for on-site field surveying or specialized tools.
