DLB-5-20AC LigoDLB 5 Outdoor Wireless Device

DLB-5-20AC LigoDLB 5 Outdoor Wireless Device



Product Description

DLB-5-20AC LigoDLB 5 Outdoor Wireless Device has the following features:

500+ Mbps mid-range wireless device

500+ Mbps throughput – a result of powerful hardware platform with 802.11ac technology based radio and a proprietary data transmission protocol (iPoll). Incorporating a QCA 9563 CPU (750 MHz), a QCA 9882 radio and 64 MBytes of RAM and 16 MBytes of ash memory the, LigoDLBac series devices are an ideal solution for capacity demanding applications. State of the art RF design with great output power and sensitivity parameters improve range and capacity over the highest modulation – 256 QAM. The 24V Gigabit Ethernet port (passive PoE) allows utilizing the full capacity of the radio when used in a point-to-point or point-to-multipoint network design. LigoDLBac series devices are backwards compatible with LigoDLB devices using iPoll mode, which helps to expand or upgrade existing networks using the latest technologies over time.

Small form factor

The shape of the enclosure is now smaller, lighter but retains the IP-66 weather protection rating. Smaller packaging reduces freight costs and makes them less obvious. The new design has no metal parts, which makes them lighter and corrosion resistant.

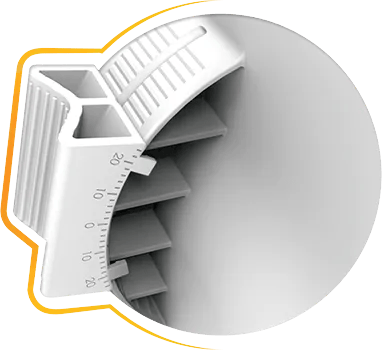

Innovative mounting bracket

The adjustable mounting bracket is very easy to assemble and install. Consisting of two parts that allow tilting once installed on a pole. The parts are easy to connect which enable the device movig up and down.

Superior Protection

3 kV line to ground and 1 kV line-to-line protection allows operating in a harsh weather conditions and unstable electrical installations.

LigoWave OS

LigoWave OS contains all of the essential features for establishing fast, strong, and reliable PTMP networks. The LigoWave OS includes IPv6 Bridge & Router Support, SSDP & Bonjour Device Discovery Options, Flexible Traffic Shaping, DHCP Option 82, and more. The user interface is built on HTML5 with responsive design.

iPoll 3: Enhanced Performance Protocol

LigoWave’s iPoll™ PTMP (Point-to-Multi-Point) proprietary protocol is an innovative solution, eliminating transmission congestion and close-cluster interference created in wireless PTMP installations.

Hotspot scenario support

Starting from v7.52 Infinity firmware image can be used on a LigoDLB series devices for the outdoor hotspot and other related applications. After the firmware upgrade DLB devices are converted into access points for outdoor hotspot networks and will lose the functionality of point-to-point or point-to-multipoint connectivity.


500+ Mbps capacity

High power (30dBm) radio

Proprietary protocol (iPoll)

Zero loss design

Integrated surge protection

Lightweight design

Innovative mounting bracket

Distance Recommendations (max):

PTP mode: 15km (9.32 mi)

PTMP mode: 10km (6.21 mi)


1 x 1000 Base-T (passive PoE 24V)
