ICS-GL1200NTBR External Gate Mag Lock

ICS-GL1200NTBR External Gate Mag Lock

Product Documents

SKU: ICS-GL1200NTBR. Category: Tags: , , , , , , , , , , , , , ,

Product Description

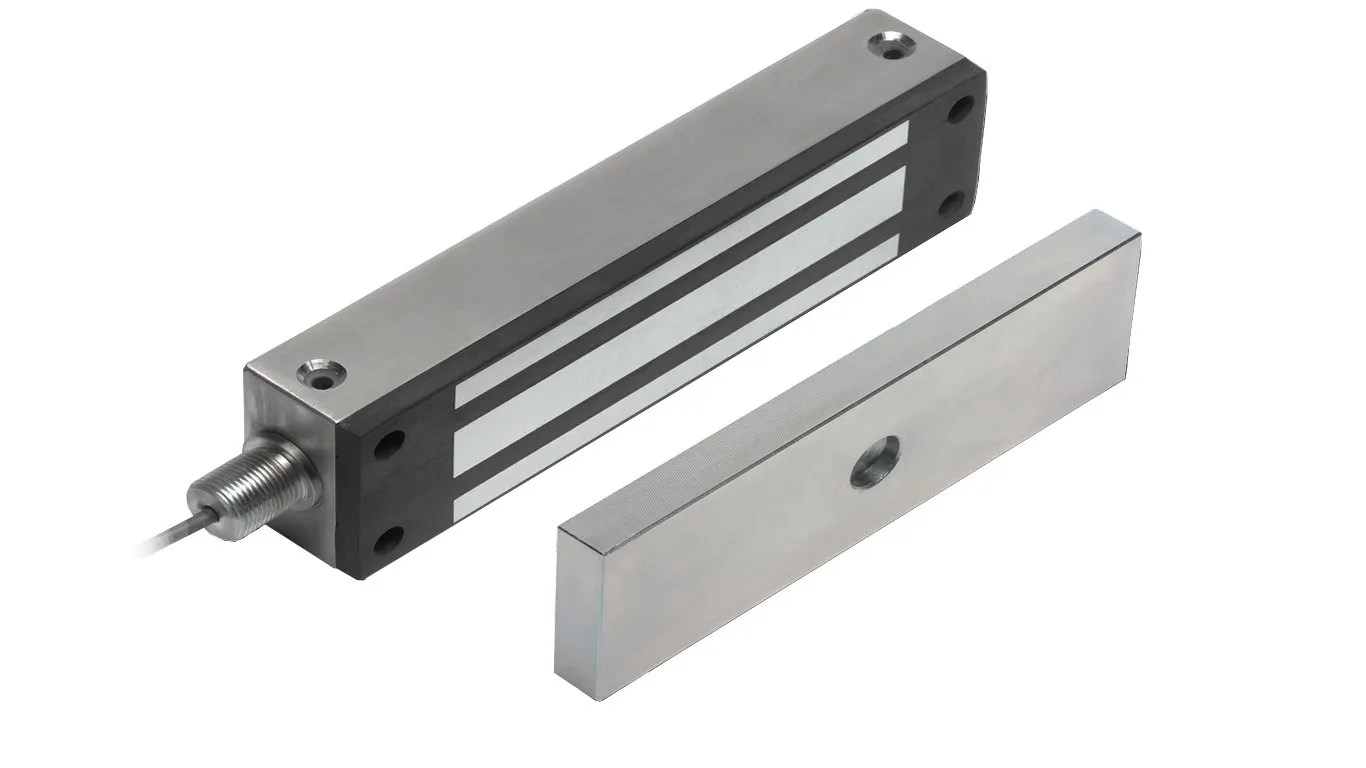

The ICS-GL1200NTBR External gate mag lock is a powerful and reliable solution, designed to enhance the security and access control of external gates and perimeter barriers. Locks engineered to provide superior holding force and durability.


  • Operating voltage: 12 or 24Vdc
  • Brushed stainless steel
  • Voltage tolerance: ±15%
  • Current draw: 460mA at 12Vdc (at temperature 20°C)
  • Magnetic bond sensor monitor output remotely monitors the door lock or unlock status. (N.C. Output-door opened; N.O. Output-door closed) (GL-1200R) (SPDT rated 0.25A at 12Vdc)
  • Weatherproof (IP67 Rated)
  • Operating temperature: -10 to 55°C (14 to 131°F)
  • Lock’s surface temperature: Current temperature ±20% (when power is on)
  • Holding force: Up to 1200lbs (545kg)
  • Weight: 5.0kg (approx)

Overview of ICS-GL1200NTBR External Gate Mag Lock

High Holding Force: The Mag Lock boasts an impressive holding force, securely locking external gates and ensuring controlled access to your property. With its powerful magnetic pull, it offers robust resistance against forced entry

Durable Construction: Constructed with high-quality materials, ensuring long-lasting performance and resistance to wear and tear, even with frequent usage

Versatile Installation: This mag lock is designed for easy installation on various types of external gates and barriers. It can be used with swing gates, sliding gates, and other perimeter access points
